Temporal Gradient Inversion for Private Trajectory Reconstruction in Embodied Reinforcement Learning

Bhujel, Sudip; Shi, Shanghao; Huang, Ruiquan; Zhang, Ning; Xiao, Yang

18.8dB

PSNR on held-out scenes

100%

Action accuracy, PPO and A2C

3–4.5ms

Per reconstructed frame

>6,900×

Faster than optimization attacks

Abstract

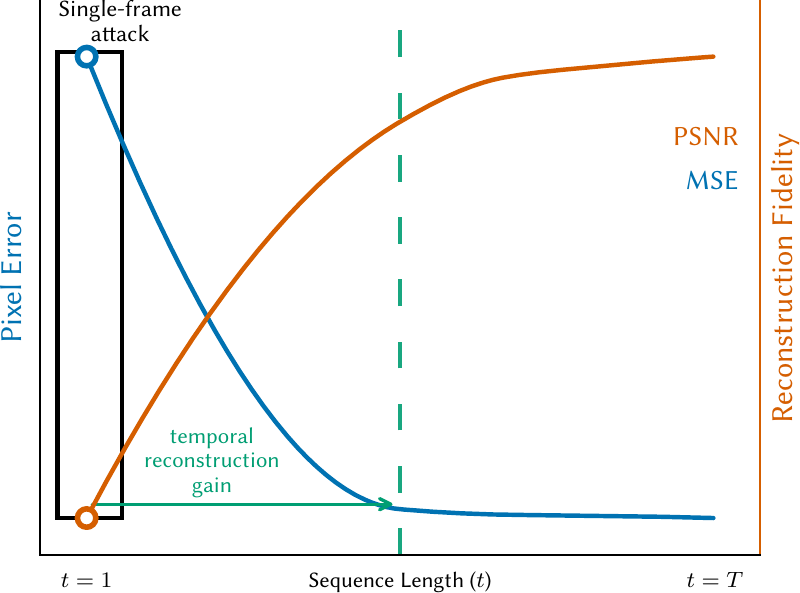

Distributed learning in embodied reinforcement-learning agents offers a degree of privacy by retaining raw sensor data on-device and transmitting only policy gradients to the server. Yet temporal structure can amplify this leakage beyond single-frame attacks. We introduce Temporal Reconstruction Attack on Consecutive Encodings (TRACE), an amortized temporal gradient-inversion attack that autoregressively reconstructs the sequence of private observation-action trajectories from per-step policy-learning gradients.

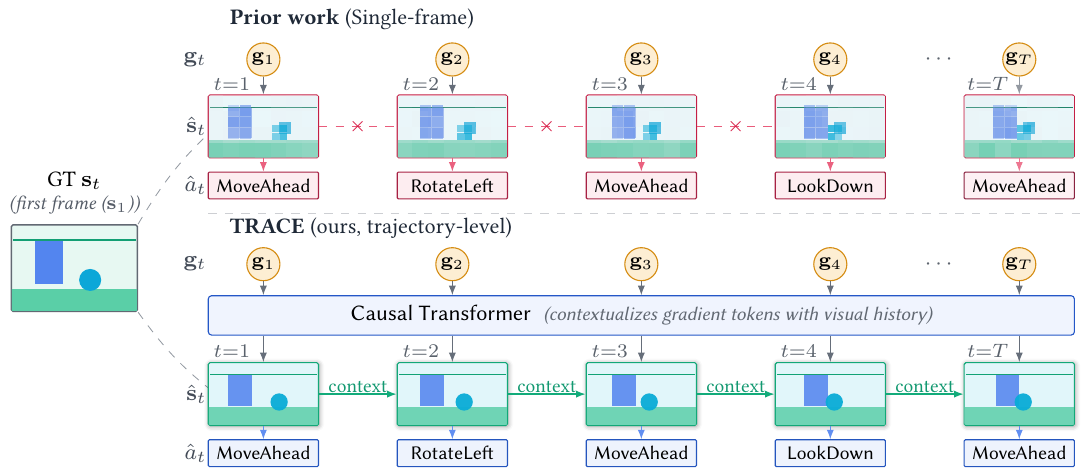

The attack exploits two structural signals ignored by prior single-frame methods: (i) cross-time correlation between successive embodied gradients, which we formalize via a conditional mutual-information bound, and (ii) closed-form action recovery from policy-head gradient structure, which we prove exact when standard entropy regularization is sufficiently small. On held-out embodied scenes, TRACE reaches 18.8 dB PSNR with near-perfect action recovery at 3–4.5 ms per reconstructed frame, dominating the learning-based baseline across all reconstruction metrics and exceeding optimization attacks while running orders of magnitude faster.

Further evaluation demonstrates TRACE's broader applicability across recurrent, residual, and compact transformer victim architectures, multi-modal inputs, and larger discrete action spaces. Defense experiments suggest that protecting temporal gradient streams may require sequence-aware privacy mechanisms.

Method

One gradient in, one frame and one action out

A trained inverter reads the gradient stream step by step. No per-sample optimization, so attacking a new trajectory is a single forward pass.

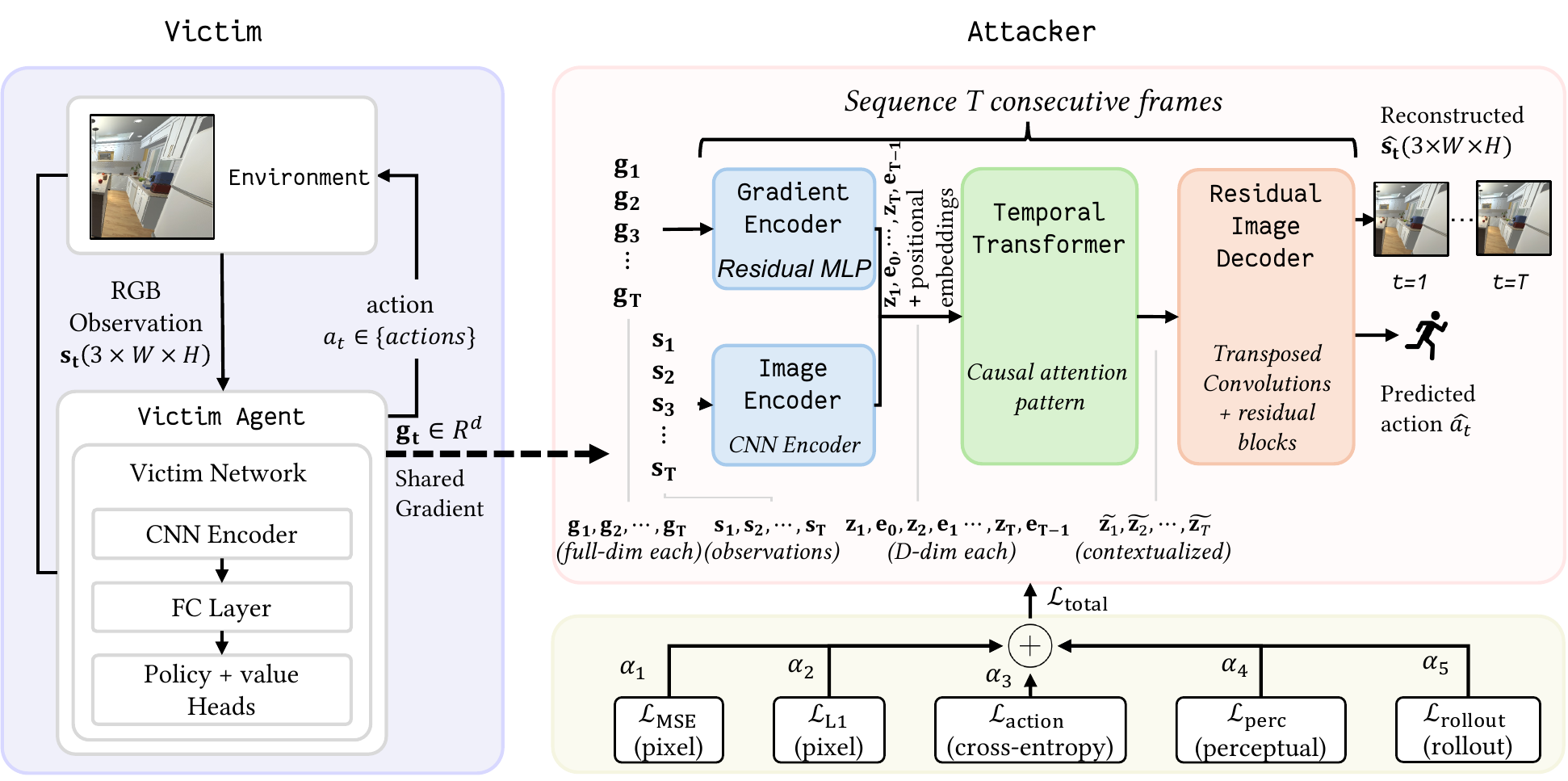

TRACE pipeline: a gradient encoder compresses each gradient to a latent, an image encoder embeds prior observations, a causal temporal transformer contextualizes the interleaved sequence, and a residual decoder reconstructs the observation and predicts the action. — The gradient encoder compresses each per-step gradient to a latent and the image encoder embeds earlier reconstructions. A causal temporal transformer contextualizes the interleaved sequence, and a residual decoder emits the observation and action for each step.

Signal 1

Cross-time correlation

Successive embodied gradients share information about the scene. We bound what the past adds about the present with a conditional mutual-information argument.

Signal 2

Closed-form action recovery

The policy-head gradient gives the action away directly. Recovery is provably exact when entropy regularization is small enough.

Training

Autoregressive, exposure-aware

The inverter conditions on its own previous reconstructions, trained so that errors do not compound over long rollouts.

Results

What the agent saw, recovered from its gradients

Point-goal navigation in AI2-THOR. The victim sees 84×84 RGB frames and picks one of five actions; the attacker only sees per-step policy gradients.

Ground truth (top) and TRACE reconstructions (bottom) over T = 8 PPO steps. TRACE recovers every action, shown under each step.

Method	MSE ↓	PSNR ↑	SSIM ↑	LPIPS ↓	Act. Acc. ↑	Time / frame
DLG	0.289	5.47	0.043	1.224	16.6%	31.0 s
Inverting Gradients	0.161	8.73	0.166	0.766	31.5%	39.3 s
Learning to Invert	0.023	16.79	0.529	0.671	100%	1.2 ms
TRACE	0.014	18.77	0.627	0.362	100%	4.5 ms
DLG	0.259	6.11	0.036	1.184	51.0%	76.1 s
Inverting Gradients	0.114	9.51	0.093	0.686	32.5%	39.6 s
Learning to Invert	0.018	17.65	0.508	0.639	100%	0.2 ms
TRACE	0.014	18.87	0.583	0.358	100%	3.0 ms

Baselines are adapted from supervised classification with an actor-critic surrogate loss. PSNR in dB. Means over held-out sequences; standard deviations are in the paper.

Generality

Not tied to one victim network

Each PPO victim gets its own separately trained attacker, with no data augmentation. K is the number of actions.

Victim	K	MSE ↓	PSNR ↑	SSIM ↑	LPIPS ↓	Act. Acc. ↑
CNN	10	0.013	18.92	0.610	0.372	99.5%
Tiny ViT	5	0.048	13.99	0.456	0.543	99.0%
IMPALA-style CNN	5	0.007	21.85	0.725	0.244	97.4%
Wider IMPALA CNN	5	0.007	22.36	0.773	0.208	98.5%
CNN + GRU	5	0.015	18.62	0.565	0.390	97.5%
Multi-modal CNN	5	0.011	19.78	0.697	0.335	97.4%

More capacity does not protect the victim: the wider IMPALA network gives the best reconstructions. Action recovery stays above 97% across every architecture.

Defenses

Per-step defenses barely slow it down

Pruning and light noise leave the reconstruction almost untouched. Only aggressive quantization, strong noise and DP-SGD break it.

The same trajectory under no defense, 50% pruning, noise σ = 0.01, and DP-SGD (C = 1.0, σ = 1.0).

Defense	Setting	MSE ↓	PSNR ↑	SSIM ↑	LPIPS ↓	Act. Acc. ↑
No defense	—	0.018	18.9	0.628	0.374	99.9%
Quantization
	8-bit	0.020	18.5	0.619	0.384	99.9%
	4-bit	0.075	12.4	0.422	0.645	37.9%
	2-bit	0.091	11.3	0.380	0.689	19.4%
Pruning (keep %)
	90%	0.018	18.9	0.628	0.374	99.9%
	50%	0.018	18.9	0.628	0.374	99.9%
	10%	0.018	18.8	0.624	0.371	99.9%
Gaussian noise (σ)
	0.001	0.018	18.8	0.626	0.376	99.8%
	0.01	0.023	18.1	0.599	0.401	94.9%
	0.1	0.049	14.2	0.438	0.572	59.9%
DP-SGD (ε, δ = 10⁻⁵)
	ε = 10	0.069	12.2	0.345	0.658	21.4%
	ε = 5	0.069	12.1	0.342	0.663	21.4%
	ε = 1	0.071	12.0	0.346	0.658	17.6%
No defense	—	0.015	18.4	0.530	0.373	99.1%
Quantization
	8-bit	0.016	18.4	0.529	0.374	98.3%
	4-bit	0.057	13.3	0.428	0.556	50.2%
	2-bit	0.078	11.5	0.404	0.653	41.4%
Pruning (keep %)
	90%	0.015	18.4	0.530	0.373	99.1%
	50%	0.015	18.4	0.530	0.373	99.1%
	10%	0.017	18.0	0.517	0.383	89.0%
Gaussian noise (σ)
	0.001	0.015	18.4	0.530	0.373	98.8%
	0.01	0.016	18.3	0.525	0.377	96.2%
	0.1	0.026	16.5	0.452	0.440	64.1%
DP-SGD (ε, δ = 10⁻⁵)
	ε = 10	0.050	13.3	0.322	0.563	27.4%
	ε = 5	0.050	13.2	0.319	0.559	23.7%
	ε = 1	0.049	13.3	0.322	0.562	24.5%

Highlighted cells mark settings where the attack clearly degrades. Protecting a gradient stream likely needs sequence-aware privacy mechanisms rather than per-step perturbation.

Cite

BibTeX

@inproceedings{bhujel2026trace,
  title         = {Temporal Gradient Inversion for Private Trajectory Reconstruction in Embodied Reinforcement Learning},
  author        = {Bhujel, Sudip and Shi, Shanghao and Huang, Ruiquan and Zhang, Ning and Xiao, Yang},
  booktitle     = {Advances in Neural Information Processing Systems (NeurIPS)},
  year          = {2026},
  eprint        = {2609.30258},
  archivePrefix = {arXiv},
  primaryClass  = {cs.LG},
  url           = {https://trace-rl.github.io/}
}
